Servers in a Box

We build servers so you don't have to

Servers-in-a-Box is the only place you can order a server and have it pre-installed with your customized VMware virtual servers and/or desktops
Learn More
We build servers so you don't have to

Let us do the heavy letting for you
Learn More
Get name brand servers with VMware pre-installed

You don't need to be a Virtual expert to start enjoying the benefits of your own virtual network
Learn More
Get name brand servers with VMware pre-installed

You don't need to be a Virtual expert to start enjoying the benefits of your own virtual network
Learn More

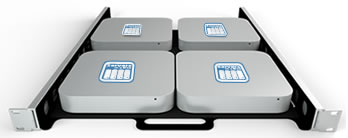

A small package with a big punch

With our mini VM servers you can fit upto 24 servers, with 24 CPU Cores and 96GB in 2" shelf
Learn More

At Servers-in-a-box, you don’t have to be a rocket scientist to run a virtual server in your business network.

We make it easy,
Just let us know what you need,
We’ll build and ship it to you,
or you can host it in our data center.

It’s that simple to take advantage of virtualization and the benefits of cloud computing.

You needed:

• expensive server hardware
• an expensive, experienced IT engineer
• an expensive server storage facility

All you need:

• a network and power
• and a small space in your closet or on your desk

Let us do all the heavy lifting while you spend more time benefiting from IT.

Includes

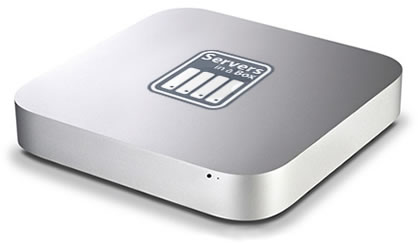

• Apple Mac Mini
• HDMI to DVI Adapter
• Power Cord

Optional Accessories

• USB Apple or Generic Keyboard
• USB Generic Mouse
• Mini DisplayPort to DVI Adapter
• Mini DisplayPort to VGA Adapter
• Mini DisplayPort to Dual-Link DVI Adapter

Optional Software Licenses and Upgrades

• VMWare Essentials and Standard Licenses
• Citrix Fundamentals Licenses
• Citrix XenApp Licenses
• Citrix XenDesktop Licenses
• Microsoft Windows Server 2003
• Microsoft Windows Server 2008 R2
• Microsoft Windows Server 2012
• Microsoft Exchange Server 2010
• Microsoft Exchange Server 2013
• Microsoft SQL Server 2005
• Microsoft SQL Server 2008
• Microsoft SQL Server 2012
• Microsoft Sharepoint Server 2010

Requirements

Compatibility:

•Compatible with any computer that can supports a network connection and an internet browser.
Note: a Windows OS computer is required to run vSphere Client for the management of the VMware ESXi host server.

Power Supply:

•UL Listed U.S./International Auto Switching 100 ~ 240v, 50/60Hz input, 12 Volt 2.5 Amp output Power Supply (adapter plugs for International use ).

Connecting to Server-in-a-Box Admin Console and ESXi Host Interface

•10/100/1000 RJ45 Ethernet connection

Optional Hardware for Administration of Server

•Monitor that supports VGA, DVI, Mini Displa Port or Thundebolt connectoion
•USB Keyboard and Mouse (optional but good to have)

Display Interface:

•Thunderbolt/Mini Display Port or HDMI to DVI (ThuinderBolt to DVI adapter is included)

Specifications

Processor:

•2.3GHz quad-core Intel Core i7 (Turbo Boost up to 3.3GHz) with 6MB L3 cache

Storage:

•1TB (5400-rpm) hard drive or
•250GB SSD Serial ATA-150 Drive (Read Speed Up to 95K IOPS)

Graphics:

•Intel HD Graphics 4000

Memory

•16GB (two 8GB) of 1600MHz DDR3 memory

Video Support

•Native Mini DisplayPort output
•DVI output using Mini DisplayPort to DVI Adapter (sold separately)
•VGA output using Mini DisplayPort to VGA Adapter (sold separately)
•Dual-link DVI output using Mini DisplayPort to Dual-Link DVI Adapter (sold separately)

Audio

•Audio line in minijack (digital/analog)
•Built-in speaker

Connections and Expansion
Support by VMWare:

Four USB 3 ports (up to 5 Gbps)
Gigabit Ethernet port
HDMI port

Not Currently Support by VMWare:

Thunderbolt port (up to 10 Gbps)
FireWire 800 port (up to 800 Mbps)
SDXC card slot
Audio in/out
IR receiver

Network:

•10/100/1000BASE-T Ethernet (RJ-45 connector)

Not Currently Support by VMWare:

802.11n Wi-Fi wireless networking;3 IEEE
802.11a/b/g compatible
Bluetooth 4.0 wireless technology

Physical Dimensions:

•Height: 1.4 in, •Width: 7.7 in, •Depth: 7.7 in •Weigh: 2.7 pounds
